Q195 Steel Tie Wire 3.5Lb 16 Gauge Binding Wire

Ask Lasest Price
Brand Name :	Vinstar
Price :	negotiated
Payment Terms :	L/C, D/A, T/T, Western Union
Supply Ability :	50T/DAY
Delivery Time :	7-15 DAYS

Add to Cart

Product Details
Company Profile

Q195 Steel Tie Wire 3.5Lb 16 Gauge Binding Wire

Q195 Tie Wire 3.5 Lb 370MPa 16 Gauge Binding Wire

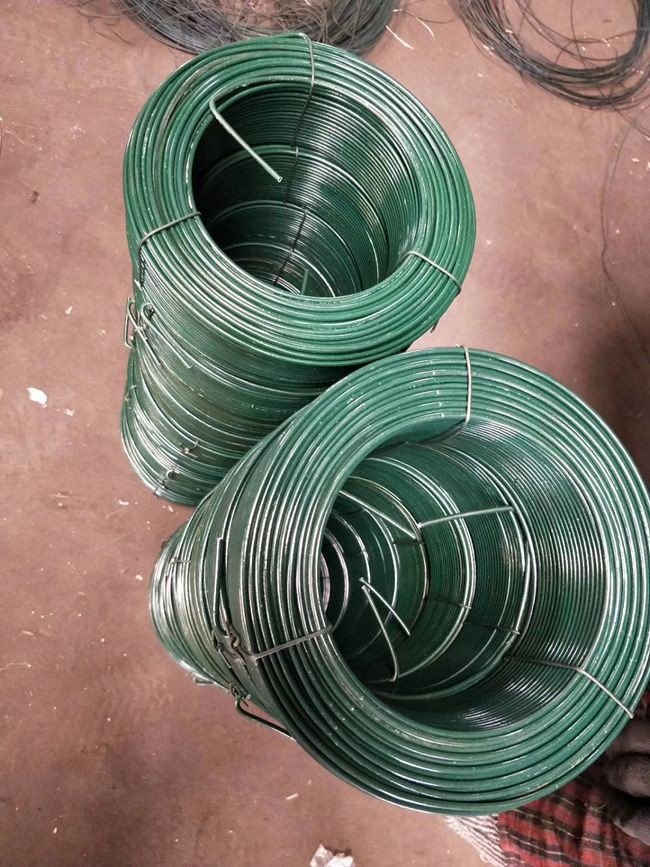

Materials: black annealed wire, galvanized wire, epoxy coated wire
Wire gague: 0.7-2.0mm, BWG16 is the most common

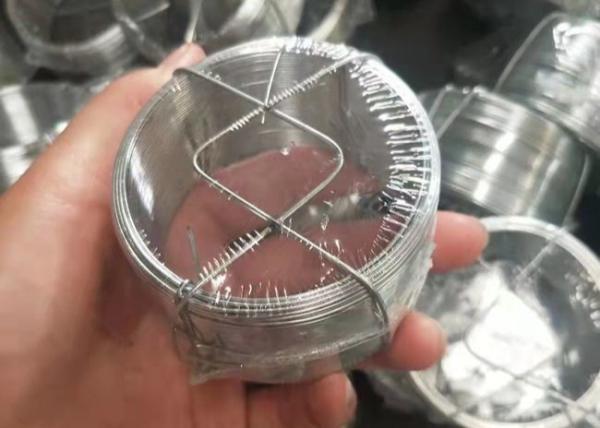

Weight: 3lbs(1.35kg),3.5lbs (1.58kg)per coil
Coil diameter:11-20cm
Core shape: round, square
Function: tie wire
Packing: 3.lbs/coil, 20coilss/carton, 24cartons/pallet or as customer's requirements.

Specification

Material	Q195 low carbon steel wire
T/S	350-550MPA (SOFT)
Elongation	8% - 15%
Package	0.5KGS - 1000KGS per coil , also can be packed in spools as request. 25KGS & 50KGS coil as standard wrapped with shrink film, Weave bag , hessian cloth, carton or pallet
Feature	Strong breaking strength, soft,easy to use

Wire Gauge	SWG in mm	BWG in mm	In Metric System mm
Wire Gauge	SWG in mm	BWG in mm	In Metric System mm
8#	4.06	4.19	4
9#	3.66	3.76	-
10#	3.25	3.4	3.5
11#	2.95	3.05	3
12#	2.64	2.77	2.8
13#	2.34	2.41	2.5
14#	2.03	2.11	-
15#	1.83	1.83	1.8
16#	1.63	1.65	1.65
17#	1.42	1.47	1.4
18#	1.22	1.25	1.2
19#	1.02	1.07	1
20#	0.91	0.89	0.9
21#	0.81	0.813	0.8
22#	0.71	0.711	0.7

Application

Due to its flexibility and durability, annealed wire is employed for binding and tying purposes in a wide range of industries, including the following:

In the construction industry, it is used to set iron and creating fencing and fence elements.
In the manufacturing industry, it is used for general baling, binding, and tying applications.
In addition to its uses in the industrial sector, annealed wire is also utilized in the commercial and consumer sectors to produce products such as artwork and artisan crafts
